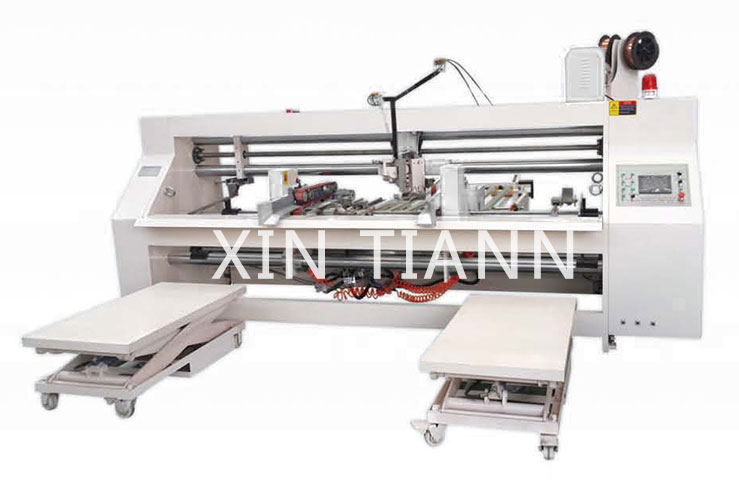

3000 High Speed Four Servo Driving Double Pieces Semi Automatic Stitcher

Specification：

The model and parameter SDJ-3000
Max.feeding size (A+B ) * 2 ( mm ) 6000
Min.feeding size (A+B) * 2 ( mm ) 1060
Max.carton length A mm 2850
Min.carton length A mm 350
Max.carton width B mm 1500
Min.carton width Bmm 160

Min.feeding height ( C+D+C ) ( mm ) 400
Max.swing top size C ( mm ) 560
Min.swing top size C ( mm ) 50
Max.height D ( mm) 2000
Min.height D ( mm ) 150
Max.nail tongue width (mm) 45

Feeding section：
● Japanese imported Yaskawa four driving servo motor, with high precision, mechanical transmission parts reduced as well as the mechanical failures.
● It can stitch box with cover or without.
● Speed: 600 nails/min.
● It can stitch single nail carton, double nail carton, and abnormal shape carton.
● Suitable for middle and small boxes, quickly and save labor greatly.
● Automatic wire feeding system, 20kg flat wire, alarming when wire used up, save time greatly.
● Isolating transformer can protect all the electrical equipment of The machine.
● Four servo driving motor used in this machine (two machine head motors and 2 for controlling nail space).
● This machine with four servo motor has apply for national patent, and the number is 201320093086.8.

Pre：2000D Small Double Pieces Four Servo Driving Semi Automatic Stitcher
Next：High Speed Double Servo Driving Semi Automatic Stitcher
